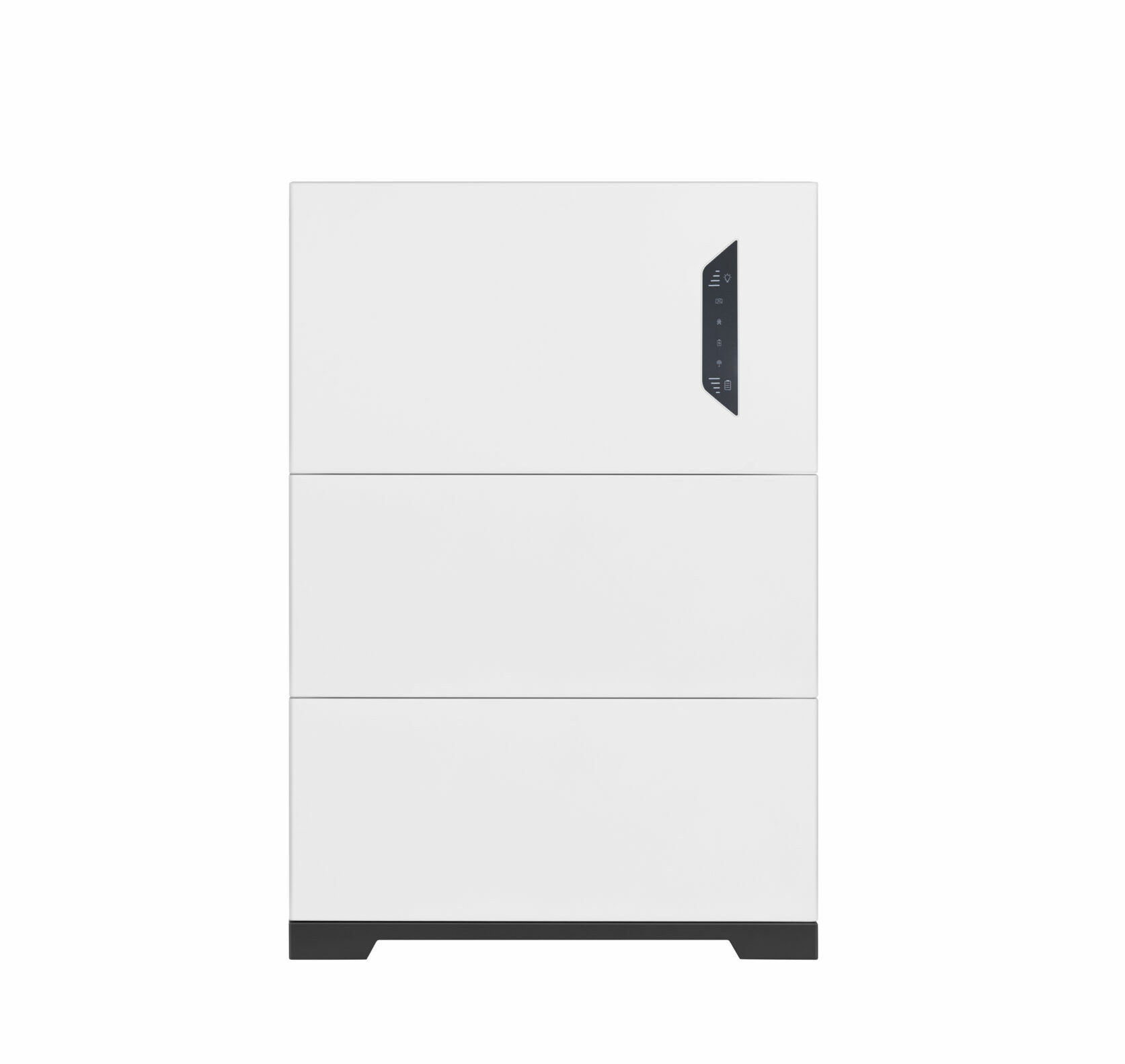

FLEXHOME LV 10.2kWh/5kW

Get started with our most compact Storage unit offering best-in-class features. Designed for space-conscious homes, the FlexHome LV series is perfectly adapted to single-phase installations.

The price is all inclusive (delivery, installation, support, warranty, grid services)

€5770
Category: Tags:
+
Description Specifications More Info

Description

The FLEXHOME LV Series is a low-voltage energy storage system with capacity from 5kWh up to 20.4kWh, designed for space-conscious homes. Perfect for residential solar setups or backup power, this all-in-one system combines battery, inverter, and BMS in a sleek, compact frame, ideal for basements or tight aisles. Stack 1-4 battery modules with ease, enjoy quick installation, and rely on its IP66 rating and 7000-cycle lifespan.

Features

Highly Integrated Design

Integrated design of PCS, BMS, and EMS (3S) to enhance system stability.

High Reliability

Compliance with the latest VDE-AR-E 2510-50 battery certification.

Wide Environmental Compatibility

Support for temperatures as low as -20℃ with an integrated heating function.

High usable energy

95% DOD.

Quick Installation

Quick-insert design for both power module and battery module to reduce installation time and cost.



Specifications

Category Values
Grid AC Input and AC Output
Rated Output Apparent Power 5000VA
Rated Input Apparent Power  9200VA
Rated Output Current 21.7 Aac
Rated Input Current 21.7 Aac
Rated AC Voltage 220 V / 230 V / 240 Vac
AC Rated Frequency 50 Hz / 60 Hz
Wiring L+N+PE
Power Factor (cosΦ) 0.8 leading – 0.8 lagging
THDI <3%
Output (BackUp)
Rated Output Apparent Power (Back Up)  5000VA
Rated Output Apparent Power (Back Up) 230 Vac
THDV(@Linear Load) <3%
Switch Time 10 ms
PV String Input (optional)
Recommended Max. PV Input Power  10000W
MAX.PV Input Voltage 500V
Startup Voltage 120V
MPPT Voltage Range 120V–480V
Number of MPPTs 2
Max. Number of PV Strings per MPPT 1
Max. Input Current per MPPT 20A
Max. Short-Circuit Current per MPPT 25A
Reverse Connect Protection Yes
Efficiency
MPPT Efficiency 99.90%
Euro Efficiency 97.50%
MAX. Efficiency 98.00%
Battery
Battery Type Lithium-ion battery (LFP)
System Energy 10.2 kWh
Usable Energy 9.72 kWh
Rated Battery Voltage 51.2 Vdc
Number of Battery Modules 2
Recommend Charging/Discharging Current 18.5A
Max Charging/Discharging Current 120 A
Cycle Life ≥6000 cycles
Battery Auto Wake Up Yes
Function
CT/ Meter (Option) Yes
OTA Yes
Safety Protection
Protection Function PV String reverse polarity protection, DC short circuit current protection, DC over current protection, DC over voltage protection, AC output short circuit current protection, AC output over current protection, AC over voltage protection, Anti-island protection, Leakage current detection, Ground connection detection
AFCI Optional
Rapid DC Voltage Cut Off Optional
Over Voltage Category AC III ; DC II
General
Dimensions (W*H*D) (mm) 725*1040*230
Net Weight 121 kg
Installation Floor-mounted
Operating Temperature Range Charge: 0°C~50°C / Discharge: -20°C~55°C
Max. Operating Altitude <4000m (power derating >2000m)
Relative Humidity Range 0–95% (No Condensation)
Ingress Protection Rating IP66
Climatic Category 4K4H
Cooling Natural convection
Noise <35dB
Communication RS485/WLAN/Bluetooth/DRY/DRM/Meter, LAN/4G (Optional)
Display LED / APP / Web
Warranty 10 years
Standard
Safety Standards IEC/EN 62109-1&-2; IEC62619; CE; UN38.3
EMC IEC/EN 61000-6-1/-2/-3/-4; IEC/EN 61000-3-2/-3/-11/-12; IEC/EN 62920
Grid
Connection Standards
EN 50549-1:2019/AC:2019/RfG:2016; CEI 0-21:2022; Arret du 9 jui n 2020; G98/G99/G100; UNE 217001/217001/NTS V2.1/RD 244; VDE-AR-N 4105: 2018-11(VDE V 0124-100:2020-06);
