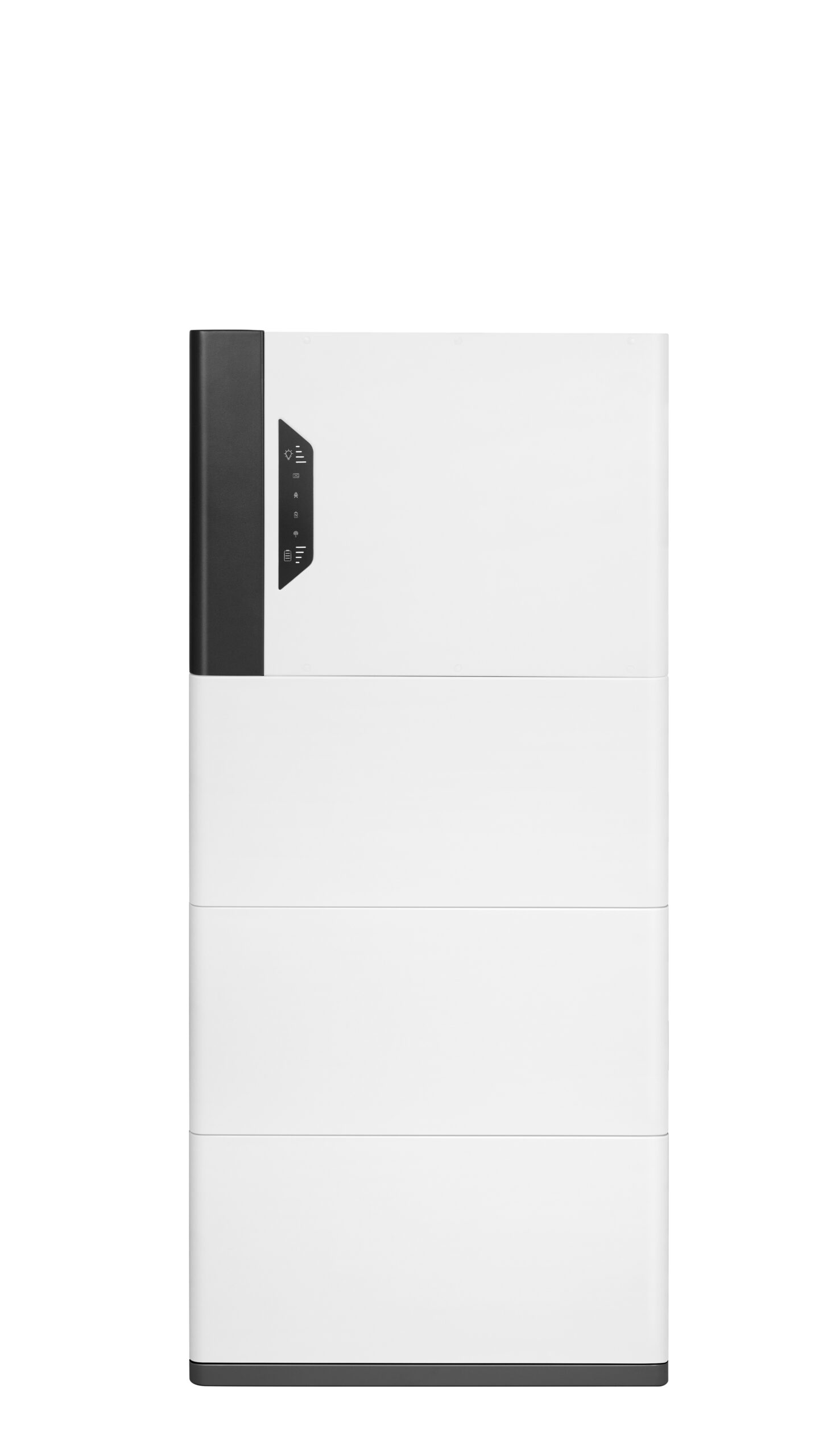

FLEXHOME HV 11.4kWh/8kW
Get more power and more capacity with the FlexHome HV series for 3-phase installations.
The price is all inclusive (delivery, installation, support, warranty, grid services)
€6580Description
The FLEXHOME HV Series is a high-performance high voltage battery designed as an advanced residential energy storage solution. This stackable battery system features a compact all-in-one design, integrating inverter, battery, and Energy Management System (EMS), delivering up to 12kW and a scalable capacity ranging from 7.6kWh to 22.7kWh, making it perfect for homes seeking reliable solar battery storage. With integrated PCS, BMS, and EMS, this high voltage energy storage solution ensures system stability, easy installation, and exceptional long-term performance, boasting over 7,000 cycles of lifespan. The RESS-PE20-H2 is also a generator compatible battery, supporting seamless integration with generators for added flexibility. Built for both indoor and outdoor use with an IP66 rating, this scalable residential battery system offers versatile energy storage options for various home settings.
Key Features
| Highly Integrated Design | High Power Density | Generator Compatibility |
| This high voltage energy storage system integrated design of PCS, BMS, and EMS (3S) to enhance system stability. | Maximum 12kW all-in-one system. | Supports generator input and auto remote start for generators. |
| Long Lifetime | Quick Installation | Minimum footprint |
| The high voltage residential battery system can support over 7000 cycles of lifetime. | Quick-insert design for both power module and battery module to reduce installation time and cost. | compact all-in-one unit with a footprint of only 0.15m². |
Specifications
| Category | Values |
| Grid AC Input and AC Output | |
| Rated Output Apparent Power | 8000VA |
| Rated Input Apparent Power | 12000VA |
| Rated Output Current | 11.6 Aac |
| Rated Input Current | 17.4 Aac |
| Rated AC Voltage | 380 V / 400 V / 415 V |
| AC Rated Frequency | 50 Hz / 60 Hz |
| Wiring | L1/L2/L3-N-PE |
| Power Factor (cosΦ) | 0.8 leading – 0.8 lagging |
| THDI | <3% |
| Output (BackUp) | |
| Rated Output Apparent Power (Back Up) | 8000VA |
| Backup Segment Output | 2 groups |
| THDV(@Linear Load) | <3% |
| Switch Time | 10 ms |
| PV String Input (optional) | |
| Recommended Max. PV Input Power | 12000W |
| MAX.PV Input Voltage | 1000V |
| Startup Voltage | 150V |
| MPPT Voltage Range | 150V–950V |
| Number of MPPTs | 2 |
| Max. Number of PV Strings per MPPT | 2 |
| Max. Input Current per MPPT | 16A |
| Max. Short-Circuit Current per MPPT | 24A |
| Reverse Connect Protection | Yes |
| Efficiency | |
| MPPT Efficiency | 99.90% |
| Euro Efficiency | 97.50% |
| MAX. Efficiency | 98.00% |
| Battery | |
| Battery Type | Lithium-ion battery (LFP) |
| System Energy | 11.4 kWh |
| Usable Energy | 10.8 kWh |
| Rated Battery Voltage | 307.2 Vdc |
| Number of Battery Modules | 3 |
| Recommend Charging/Discharging Current | 18.5A |
| Max Charging/Discharging Current | 37A |
| Cycle Life | ≥7000 cycles |
| Battery Auto Wake Up | Yes |
| Function | |
| CT/ Meter (Option) | Yes |
| OTA | Yes |
| Diesel Generator Support | Yes |
| Safety Protection | |
| Protection Function | PV String reverse polarity protection, DC short circuit current protection, DC over current protection, DC over voltage protection, AC output short circuit current protection, AC output over current protection, AC over voltage protection, Anti-island protection, Leakage current detection, Ground connection detection |
| AFCI | Optional |
| Rapid DC Voltage Cut Off | Optional |
| Over Voltage Category | AC III ; DC II |
| General | |
| Dimensions (W*H*D) (mm) | 670*1450*230 |
| Net Weight | 155 kg |
| Installation | Floor-mounted |
| Operating Temperature Range | Charge: -10°C~50°C / Discharge: -10°C~55°C |
| Max. Operating Altitude | <4000m (power derating >2000m) |
| Relative Humidity Range | 0–95% (No Condensation) |
| Ingress Protection Rating | IP66 |
| Climatic Category | 4K4H |
| Cooling | Natural convection |
| Noise | <35dB |
| Communication | RS485/WLAN/Bluetooth/DRY/DRM/Meter, LAN/4G (Optional) |
| Display | LED / APP / Web |
| Warranty | 10 years |
| Standard | |
| Safety Standards | IEC/EN 62109-1&-2; IEC62619; CE; UN38.3 |
| EMC | IEC/EN 61000-6-1/-2/-3/-4; IEC/EN 61000-3-2/-3/-11/-12; IEC/EN 62920 |
| Grid Connection Standards |
EN 50549-1:2019/AC:2019; VDE-AR-N 4105:2018; DIN VDE V 0124-100:2020; EN50549-1+EN50438; NA/EEA-NE7–CH 2020; EIFS 2018:2; OVE Directive R 25:2020; TOR Erzeuger Type A V1.2 |
